The intent here will be to have some example schematics for vehicle drive wiring and some excerpts from the guide to conversion that Iím currently penning.

If you are interested in obtaining the E2V conversion guide then please express an interest. If I get enough Iíll reprint and whilst it was aimed at the then standard conversion kit the data is still valid for alternate components.

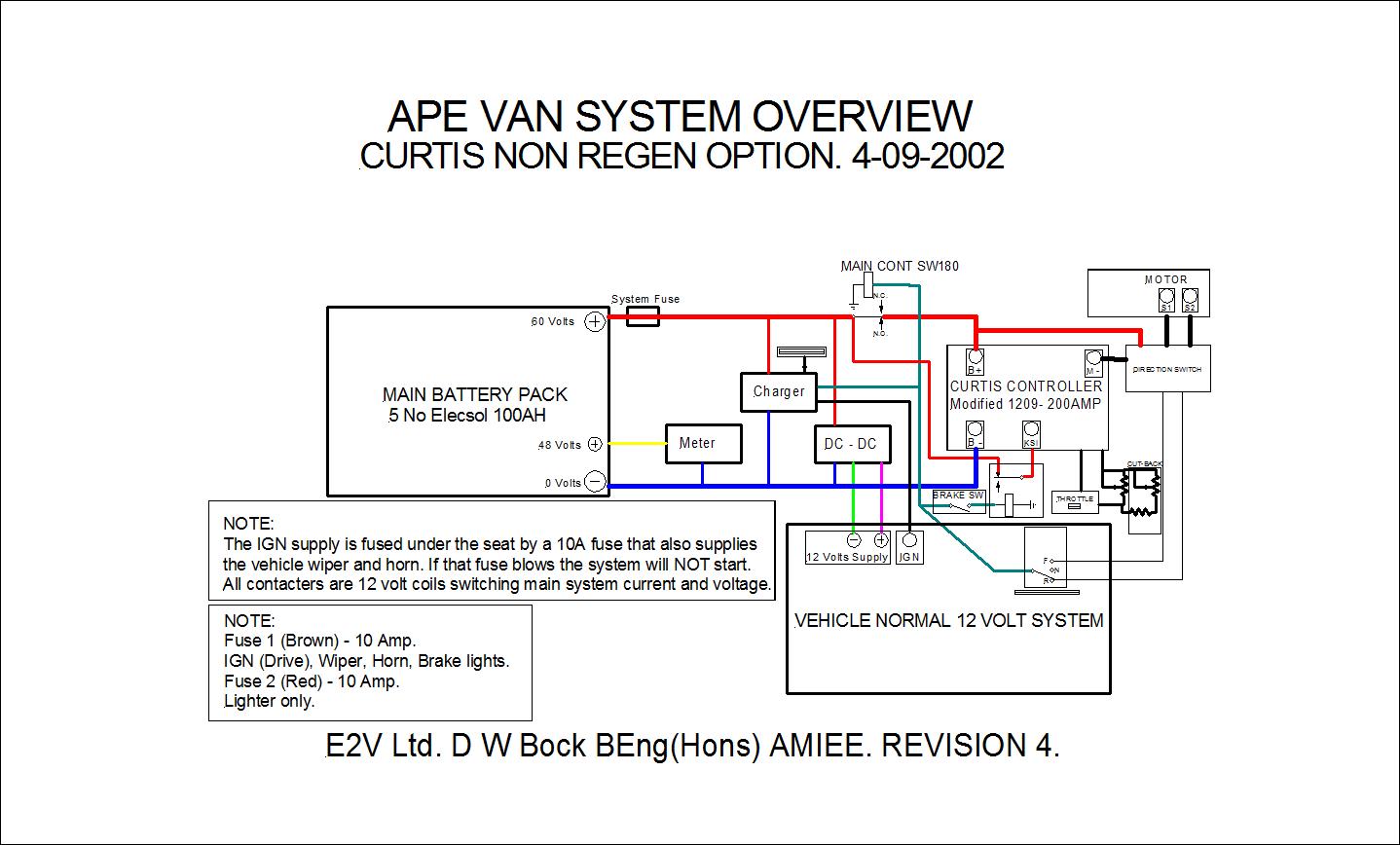

So just to wet your whistle here a basic wire diagram to kick off.

If you would like it as a jpg click here!
